EcoFlow Power Kit

• Versatile Charging Methods: Supports up to 4800W solar, 1000W alternator, 3000W shore power, and 1800W Smart Generator input.
• Easy Plug-and-Play Installation: Quick and straightforward setup with no technical expertise required.
• Compact and Integrated Design: Combines five components into one space-saving Power Hub.

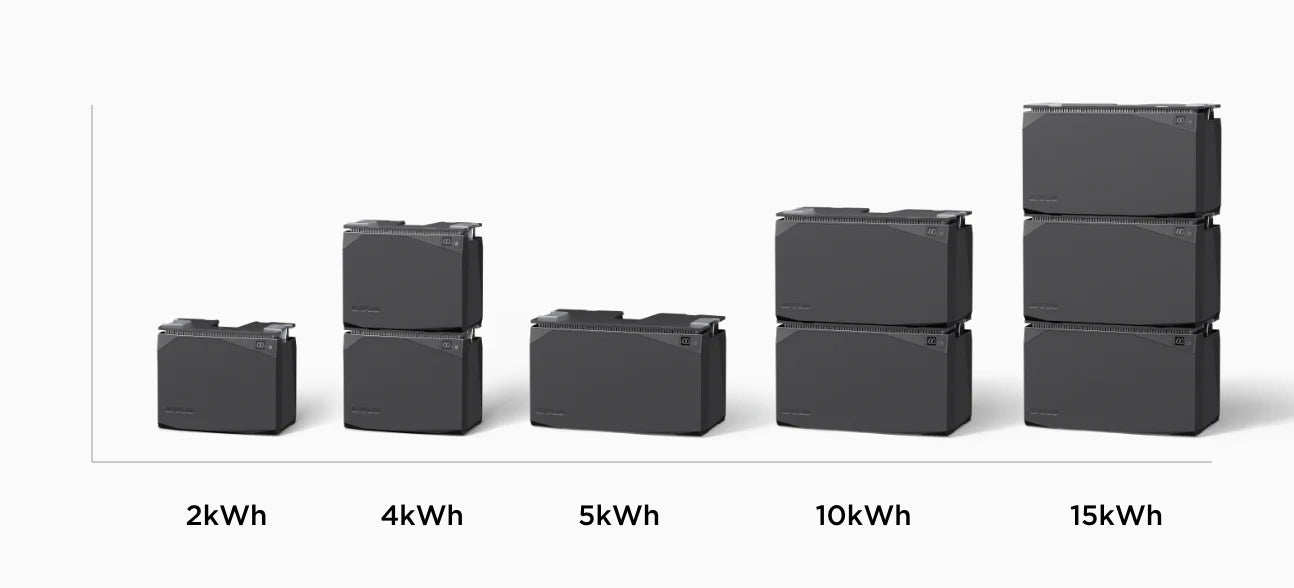

• Expandable Capacity: Stackable batteries provide up to 15kWh of power.
• 48V System Efficiency: Safer and more efficient than traditional 12V systems.
• User-Friendly Interface: Features a convenient screen and smart controls for easy energy management.
• Remote Smart Controls: Monitor and manage your power system from anywhere with the EcoFlow app and Power Kit Console.

Power Kits:

• Certifications: UL, FCC, ICES
• AC Output/Frequency: Pure Sine Wave, 3600W (Surge 7200W), 120V, 50Hz/60Hz
• DC Output: 13.6V/70A 1000W Max; 26.4V/60A 1600W Max
• AC Input: X-Stream Fast Charging 3000W Max, 30A Max
• AC Input Voltage/Frequency: 100-120V, 50Hz/60Hz
• Operating Temperature: -13°F to 140°F
• Storage Temperature: -13°F to 140°F

LFP Batteries:

• Capacity: 2048Wh / 5120Wh (51.2V, 100Ah)
• Cell Chemistry: Lithium Iron Phosphate
• Cycle Life: ~3500 Cycles up to 80% Capacity
• Protection Level: IP54
• Certifications: UL, FCC, CE, E-Mark, UKCA, UN38.3, RCM, PSE
• Operating Temperature: -4°F to 122°F (-20°C to 60°C)
• Storage Temperature: -4°F to 140°F (-20°C to 60°C)

Power Hub:

• Dimensions: 11.8 x 18.9 x 5.5 inches (HxWxD)
• Certifications: CE, UL, FCC
• Connectivity: Wi-Fi, Bluetooth
• AC Output/Frequency: Pure Sine Wave, 3600W (Surge 6000W), 230V~, 50Hz/60Hz
• DC Output: 13.6V/70A 1000W Max; 26.4V/60A 1500W Max
• AC Input: X-Stream Fast Charging 3000W Max, 16A Max
• AC Input Voltage/Frequency: 220-240V, 50Hz/60Hz
• Solar Input: 15-150V 30A, 1600W max each port, up to 4800W total
• Alternator Input: 13V-60V, 60A/30A/30A, up to 4800W total
• Operating Temperature: -25°C to 60°C
• Weight: 31 lbs

AC/DC Smart Distribution Panel:

• AC Input: 30A Max. 120V, 3600W
• AC Output: 6 AC Positions, 20A Max Each
• DC Input: 70A Max
• DC Output: 12 Fused DC Positions (6 Controllable via Console & App)
• Operating Temperature: -13°F to 140°F (-25°C to 60°C)
• Dimensions: 8.3 x 13.9 x 3.9 inches (HxWxD)
• Weight: 5.7 lbs
• Protection Level: IP21
• Certifications: UL, FCC, PSE

Power Kit Console:

• Touch Screen: 7 Inch (6 x 3.4 inches)
• Power Supply Voltage: 12 VDC
• Operating Temperature: -4°F to 140°F (-20°C to 60°C)
• Certifications: UL, FCC, ICES, CE, UKCA, E-Mark, RCM, TELEC, KCC
