Flatline Van Co. Steel Side Steps | Mercedes Sprinter 144", 170" & Winnebago Revel 2007+

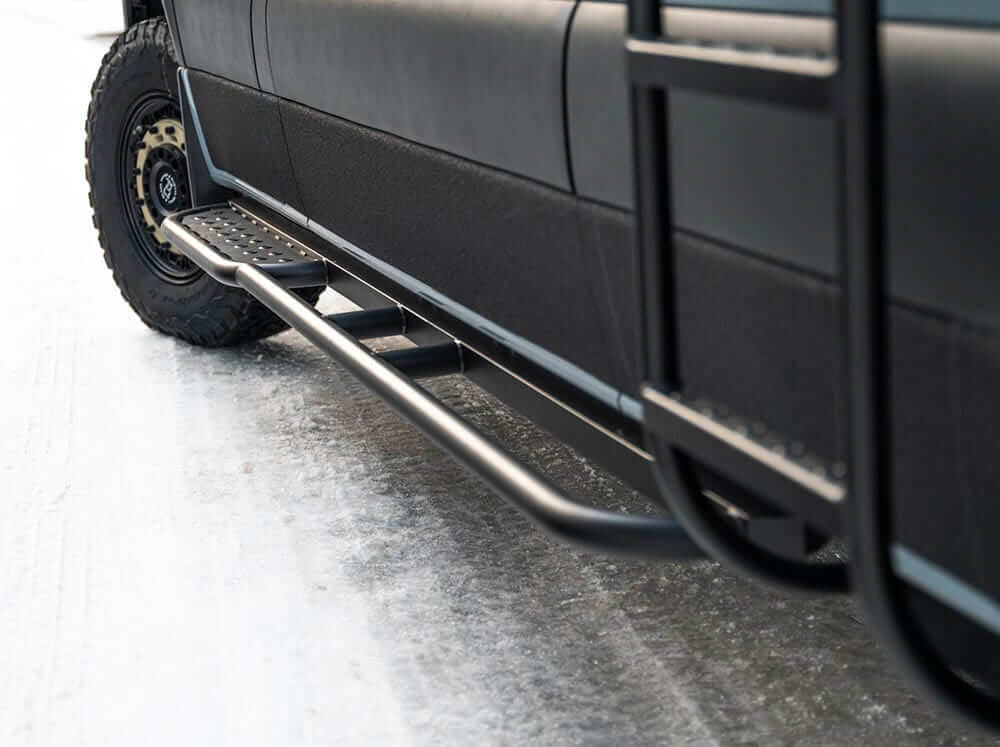

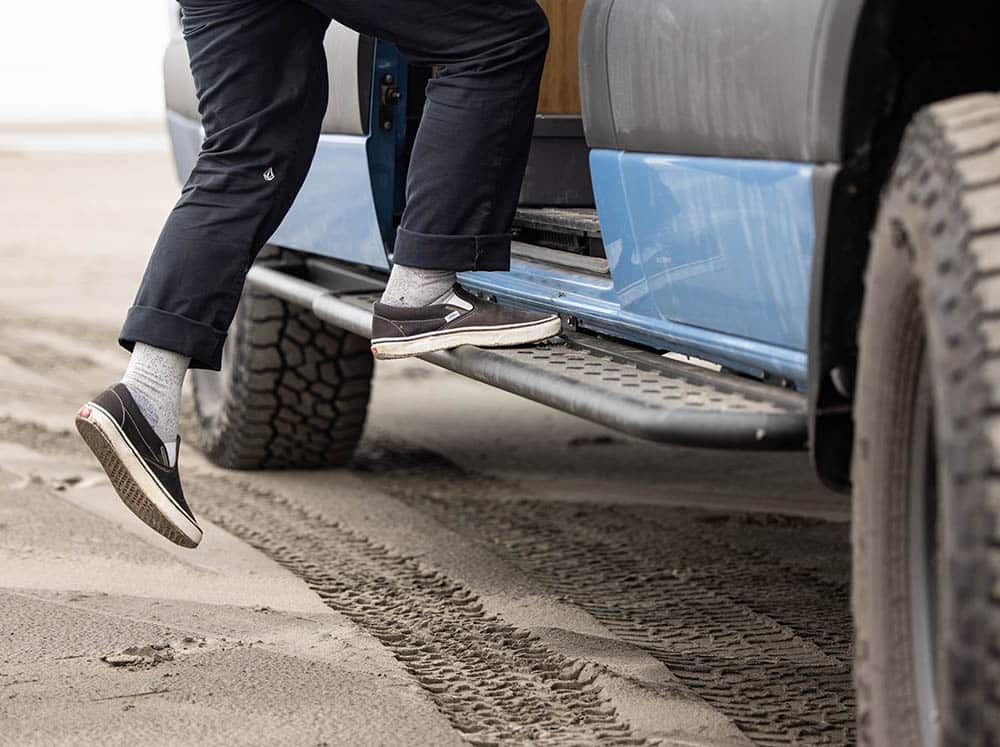

Heavy-duty steel side steps that make climbing in and out of a stock or lifted Sprinter easier, with a tougher look. They sit high and tight to the body for a clean profile and won't block a side ladder.

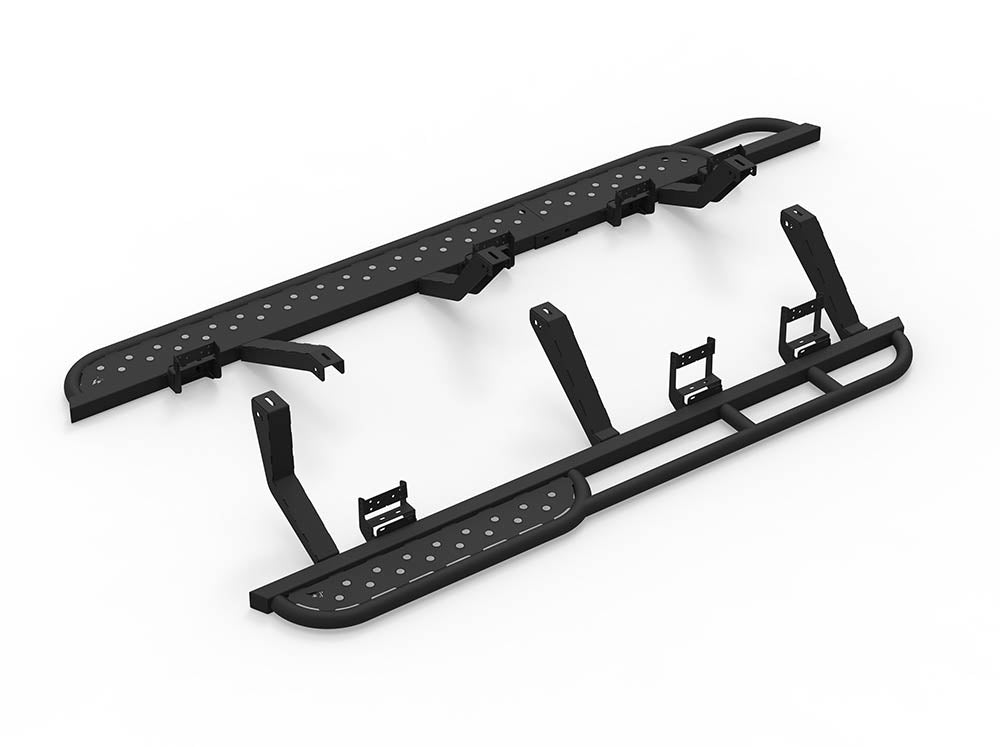

- Powder-coated steel: 2" x 2" square tube with 1.75" round tube

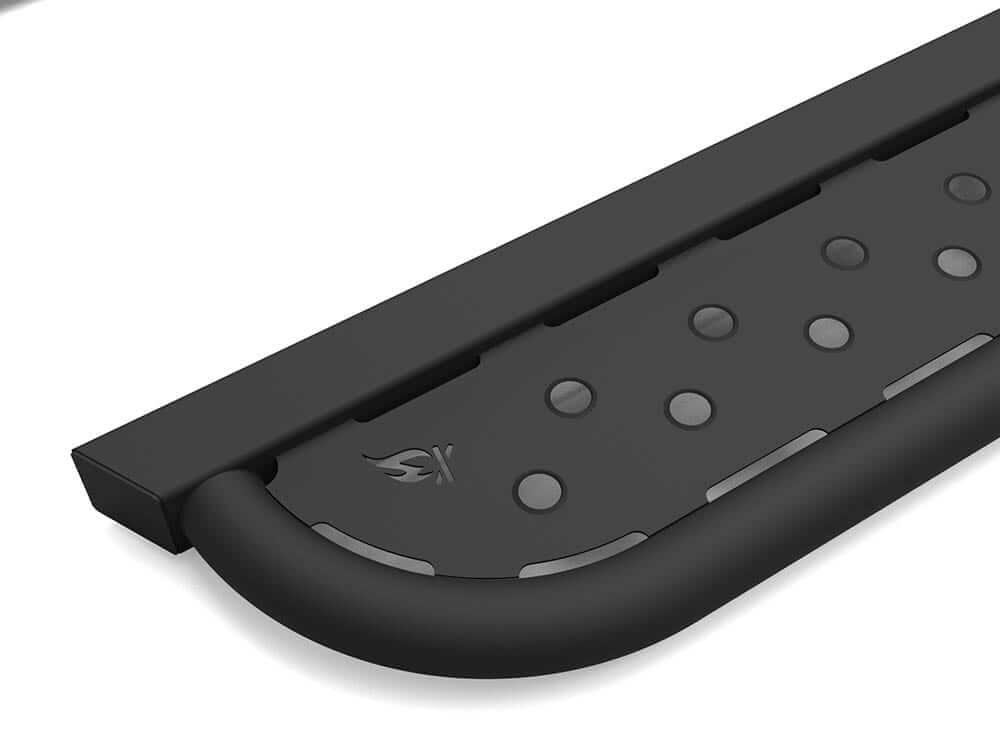

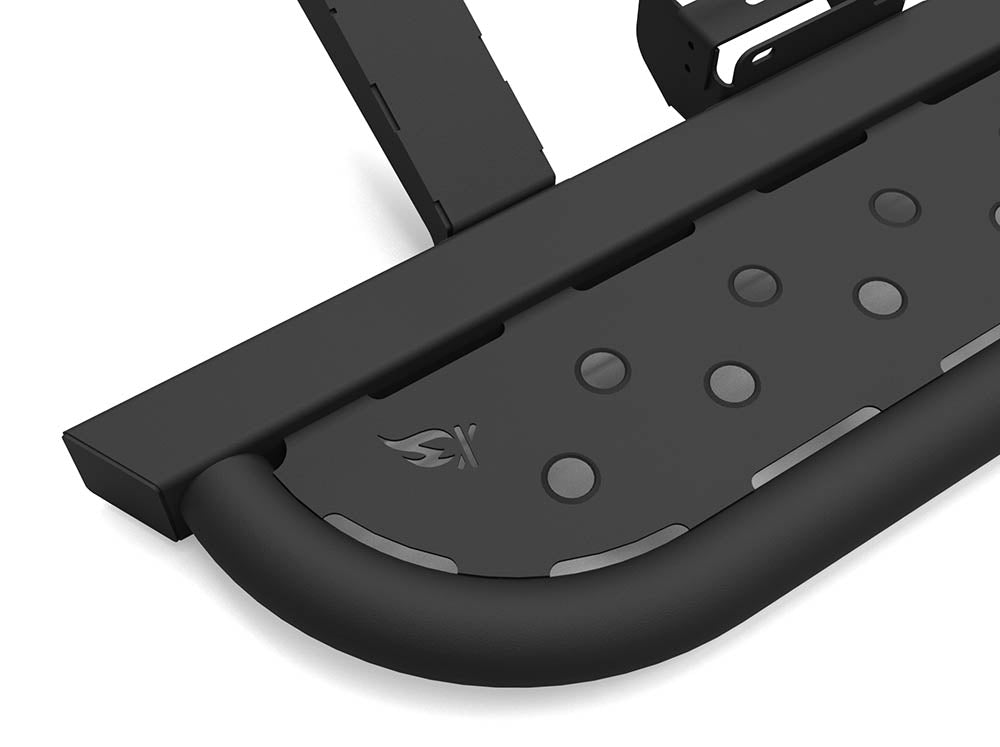

- Dimpled tread plates in the step hoops for traction in rain, mud and snow

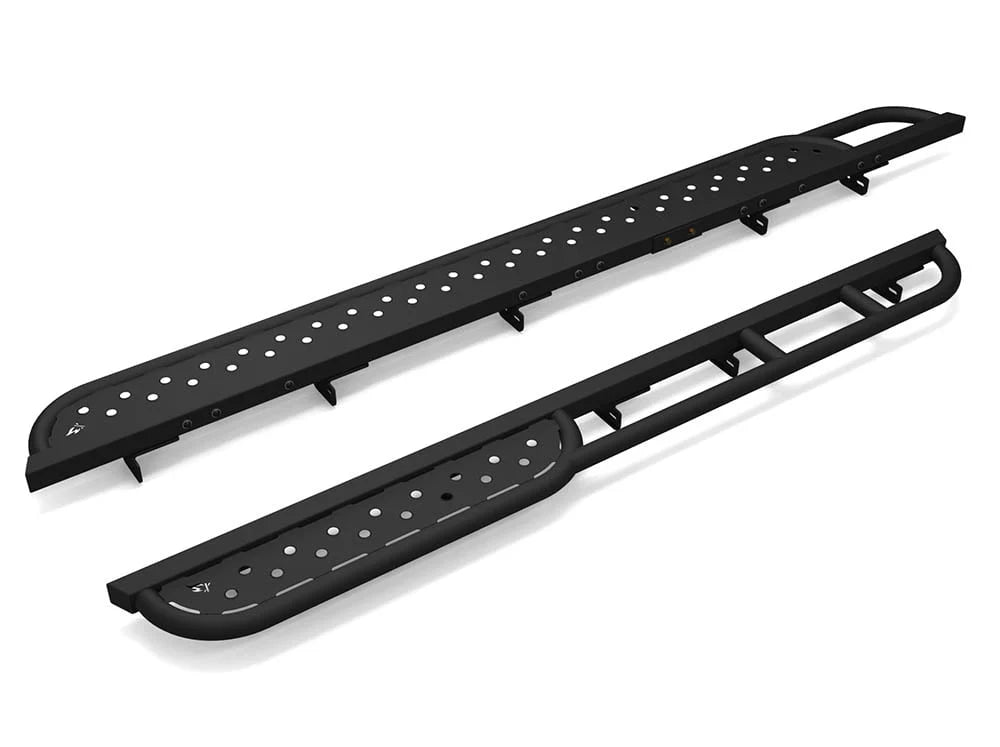

- Driver side: 33.5" traction step that stops short of the rear wheel arch to leave room for a side ladder
- Passenger side: 53.5" traction step, designed to pair with the FVC Step Extension

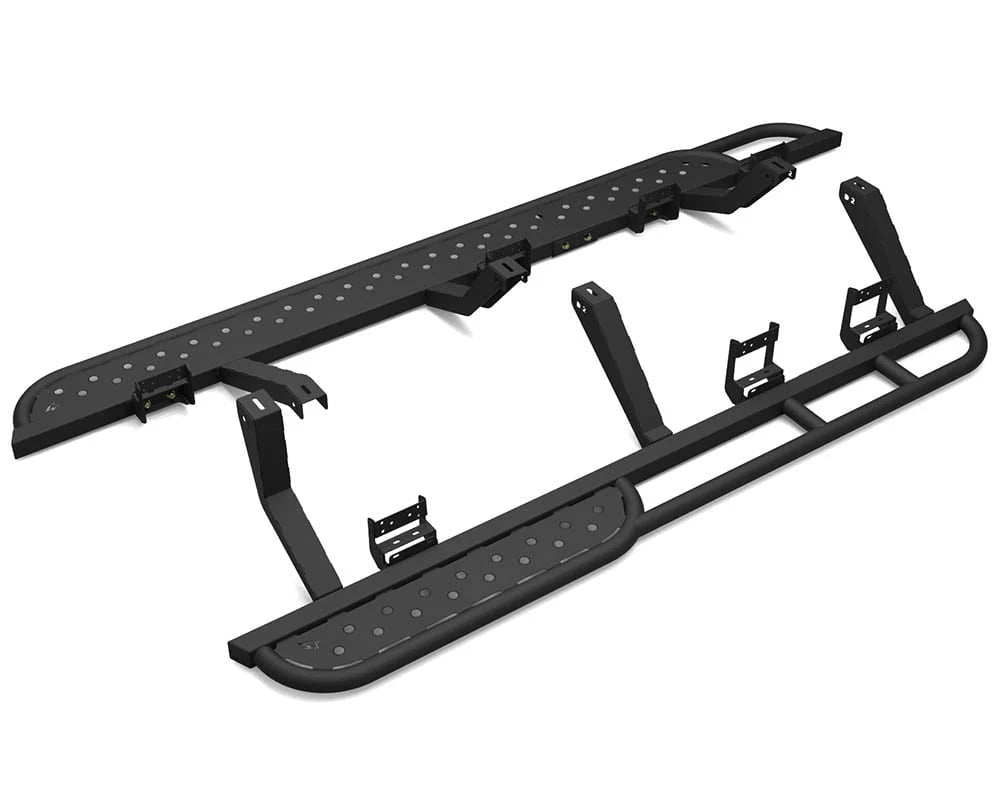

- Bolt-on bracket system with all mounting hardware included
- Works with the FVC Apex, Wheel Wrap and standard Side Ladders with no modifications
- Revel version mounts directly to the existing Revel mounting brackets
Choose your van
- Sprinter 144" (SP1114B): $1,645

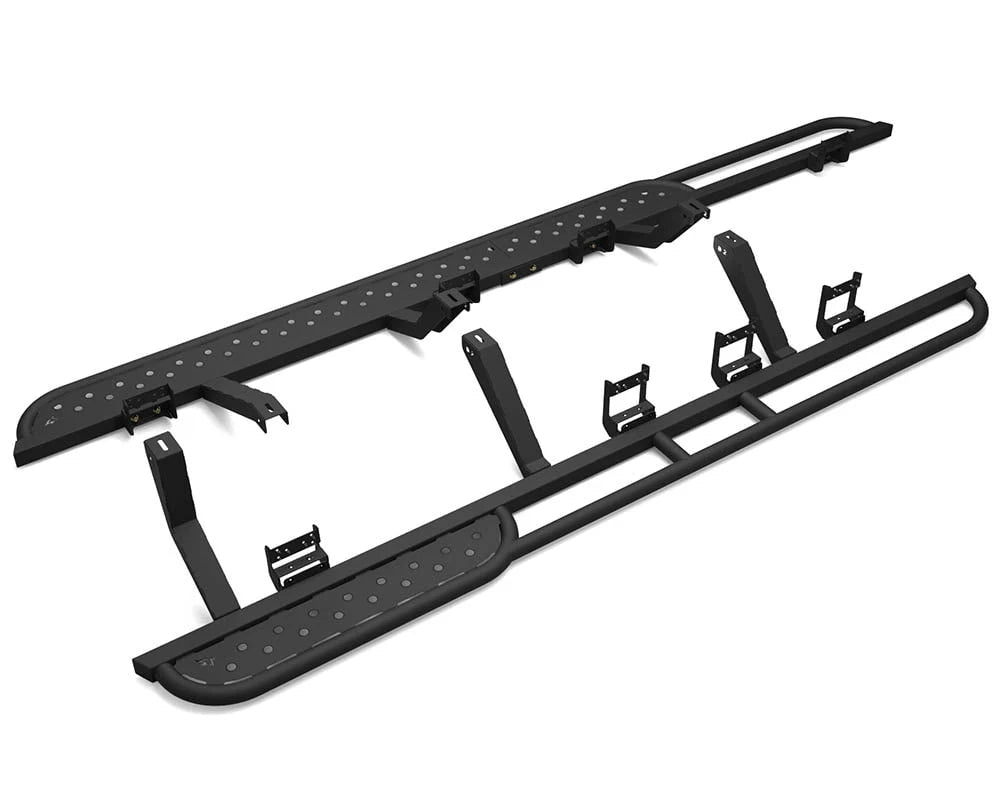

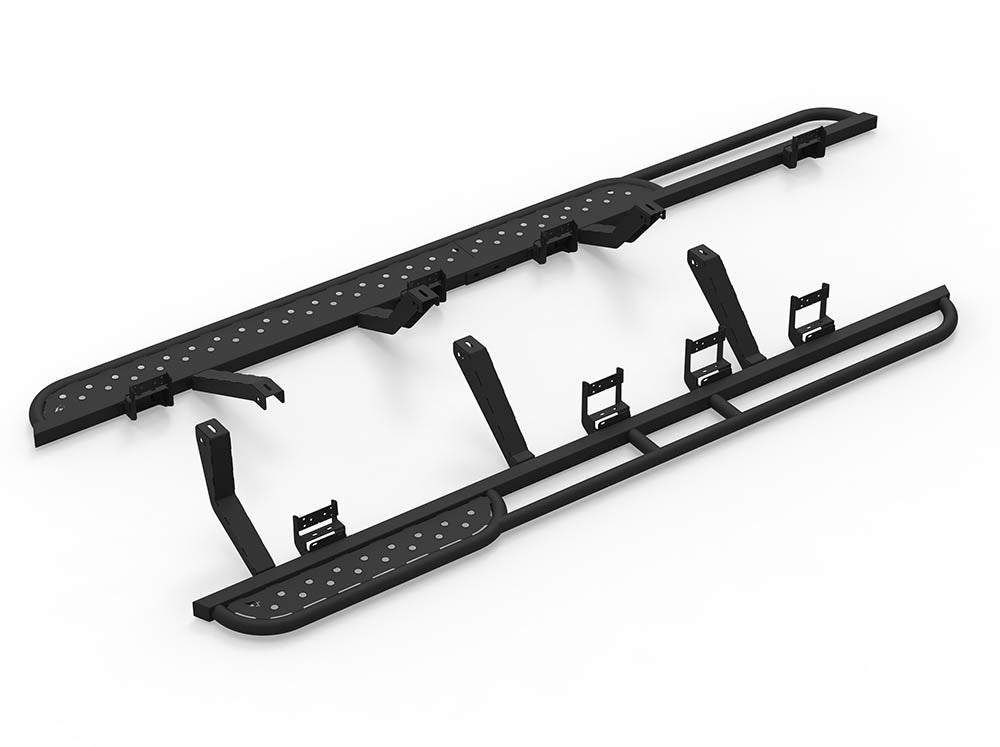

- Sprinter 170" (SP1119B): $1,845

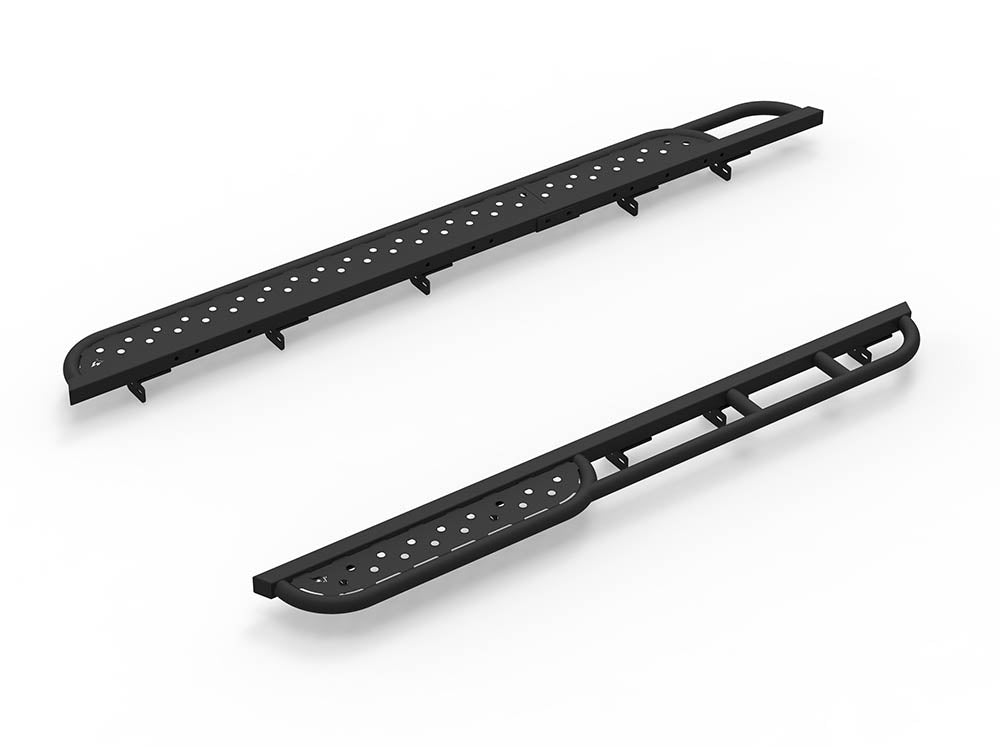

- Winnebago Revel (SP1120B): $1,645
Install tips from owners: one 170" owner finished in about 3 hours. Start with the passenger side, since it sets the front-to-back position. The included self-tapping screws are raw metal and stay visible, so some owners paint them black. If you're also adding a diesel heater fuel line or a skid plate, plan the under-van layout first, since those can compete for a mounting hole.
Steel or Aluminum Side Steps? Choose these steel steps for the most rugged look and build. Choose the FVC Aluminum Side Steps for a lighter drop-step design.

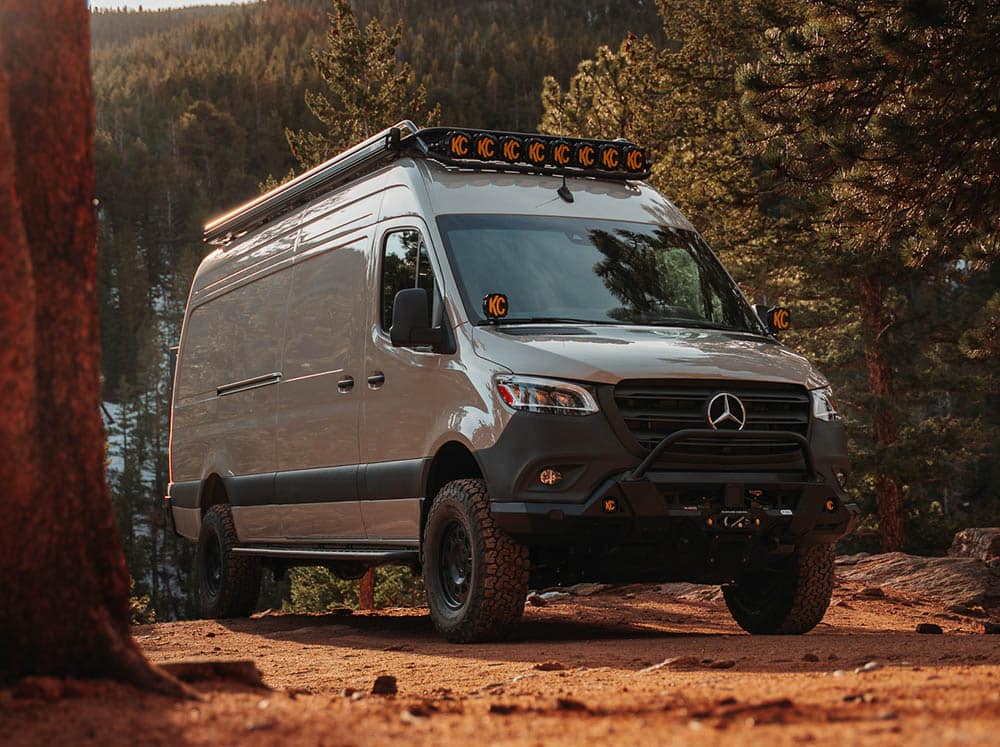

Pairs with the FVC Step Extension, side ladders and Nudge Bar. Our Utah shop can install this for you in Lindon. Ask us for an install quote.
144" Installation Guide (PDF) · 170" Installation Guide (PDF) · Winnebago Revel Installation Guide (PDF)
Fitment
- 2007+ Mercedes-Benz Sprinter 1500/2500/3500/3500XD, 144", 170" and 170" EXT, low or high roof, plus the Winnebago Revel
- Passenger vans with rear heat/AC may need some modification
- Does not fit the eSprinter
