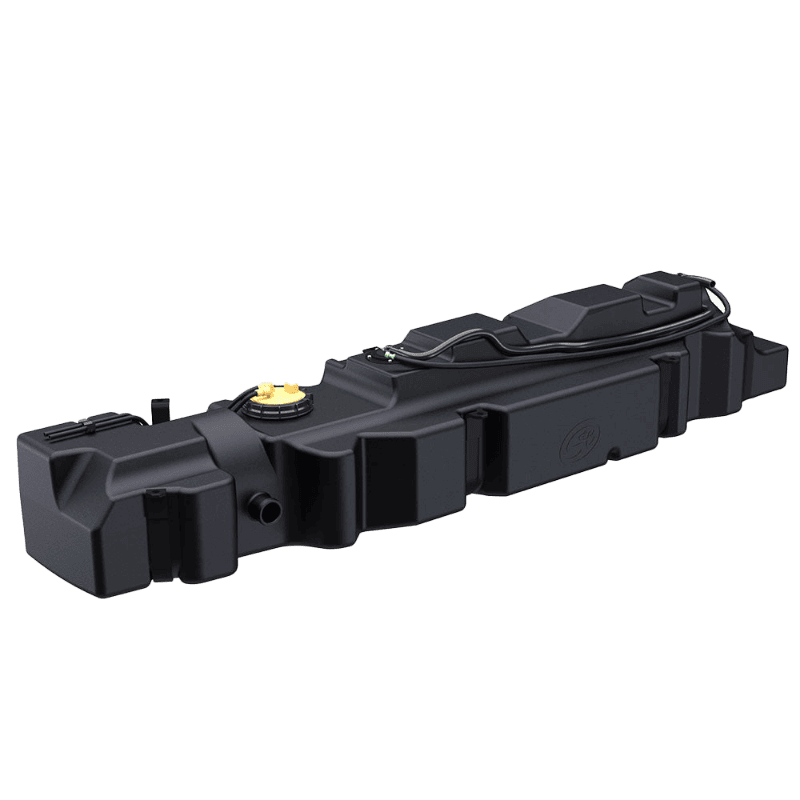

S&B 40 Gallon Long Range Fuel Tank | Mercedes Sprinter 144" & 170" 2007-2018 & Winnebago Revel 2018-2019

A plug-and-play 40 gallon replacement for the factory 24 gallon fuel tank on earlier NCV3 Sprinters and the Sprinter-based rigs built on them. It mounts in the stock location with the included straps, extends about 13.1" forward and 3.3" rearward of the original tank, and reuses your OE sending unit.

Fitment

• Mercedes Sprinter 144" and 170": 2007–2018 (3.0L diesel), 2014–2017 (2.1L diesel)
• Winnebago Revel: 2018–2019 (2017–2018 chassis)
• Coachmen Prism: 2009–2019

For 2019+ Sprinters, see the S&B 45 gallon tank (10-1031) or the 40 gallon tanks 10-1027 (2019–2022) and 10-1032 (2023+).

Fuel gauge & range

• The fuel gauge reads accurately only on vans with the J51 fuel gauge option. Ask your Mercedes dealer to confirm.
• The gauge stays on full for the first 5–7 gallons, then moves normally.
• Distance-to-empty still calculates from the stock 24 gallon capacity (at 20 mpg, about 800 miles of real range vs. about 480 shown).
• The auxiliary fuel tap stops drawing at about 1/3–1/2 tank (vs. 1/4 tank on stock).
• Using an auxiliary transfer/gravity-feed fuel tank with an S&B tank voids the lifetime warranty.

Specs

• Capacity: 40 gallons (approx.), vs. 24 gallon OEM
• Dry weight: 37 lbs
• Construction: 1/4" thick crosslink polyethylene
• Sending unit: reuses OE unit. Straps included.
• Warranty: S&B lifetime warranty
• S&B Part #: 10-1026
